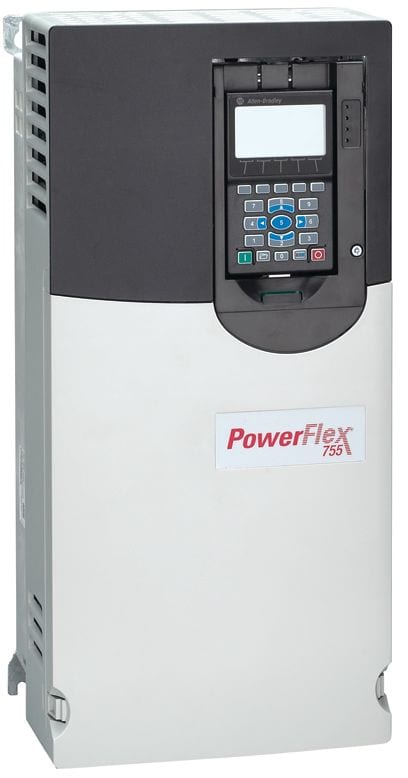

Allen-Bradley - PowerFlex Air Cooled 755 AC Dr - 20G1AJC650JN0NNNNN
par PC
43 929.22 CHF
Livraison
Spécificités essentielles
tension du secteur - 380...480 V
courant de sortie nominal I2N - 650 A
puissance utile max. en charge quadratique sous tension de sortie assignée - 355 kW
indice de protection (IP) - IP20
fréquence du secteur - 50/60 Hz
Conditionnement
1 PC
EAN
00884951884977
Réf. Routeco
20G1AJC650JN0NNNNN
Réf. Fournisseur
20G1AJC650JN0NNNNN
Réf. Commerciale
20G1AJC650JN0NNNNN
tension du secteur:
380...480 V
courant de sortie nominal I2N:
650 A
puissance utile max. en charge quadratique sous tension de sortie assignée:
355 kW
indice de protection (IP):
IP20
fréquence du secteur:
50/60 Hz
nombre de phases d'entrée:
3
puissance utile max. en charge linéaire sous tension de sortie assignée:
315 kW
utilisation autorisée en zone résidentielle et commerciale:
oui
PowerFlex 755 AC Drive, with Embedded Ethernet/IP, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12, IP54 800mm Deep MCC Style, 650 Amps, 400kW LD, 355kW ND, 315kW HD, 400 VAC, 3 PH, Frame 8, Filtered, CM Jumper Installed, None, Blank (No HIM)
- •Power ratings: ◦380…480V: 0.75…1400 kW / 1.0…2000 Hp / 2.1…2330 A
- ◦600V: 1.0…1500 Hp / 1.7…1530 A
- ◦690V: 7.5…1500 kW / 12…1485 A
- •IP00/IP20 NEMA/UL Type Open, flange mount, IP54 NEMA/UL Type 12
- •Pre-engineered Power Option Bay provides cost-effective solution for popular power options
- •Dual-port EtherNet/IP™ Option Module helps you leverage EtherNet/IP networks, minimize the number of managed switches, and reduce cabling needs when using Device Level Ring (DLR) networks
- •Automatic Device Configuration (ADC) allows Logix controllers to detect a replaced drive and download all configuration parameters automatically
- •V/Hz control, vector control with FORCE™ technology, sensorless vector control, and permanent magnet motor control
- •Integrated Motion on EtherNet/IP eases drive configuration and control by using profiles and instruction sets embedded in the Studio 5000™ Logix Designer application
- •Predictive diagnostics for increasing the life of cooling fans and relay outputs
- •Configuration and programming via integral LCD Human Interface Module (HIM), DriveTools SP software, or Connected Components Workbench software
- •Supports easy integration through the embedded EtherNet/IP port and five option slots that support feedback, I/O, safety, and communications modules and an auxiliary 24V DC power supply
- Available Safety Options
- •Safe Torque-Off option is certified at PLe/SIL3 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system. All safety options are available as a kit for user installation
- •Safe Speed Monitor option is certified at PLe/SIL3, Cat 4 and allows you to safely monitor and control the speed of your application which allows operators to perform some process or maintenance work without stopping the machine
