Allen-Bradley - "Micro D-Code, QD Style Etherne" - 1585D-E4UBDE-20
par PC
170.34 CHF
Livraison
Spécificités essentielles
catégorie - 5E
longueur - 20 m
type de connecteur raccordement 1 - M12
type de connecteur raccordement 2 - M12
matériau du boîtier de connecteur raccordement 2 - plastique
Conditionnement
1 PC
EAN
10885630038145
Réf. Routeco
1585D-E4UBDE-20
Réf. Fournisseur
1585D-E4UBDE-20
Réf. Commerciale
1585D-E4UBDE-20
catégorie:
5E
longueur:
20 m
type de connecteur raccordement 1:
M12
type de connecteur raccordement 2:
M12
matériau du boîtier de connecteur raccordement 2:
plastique
couleur de gaine:
autre
douille de protection contre le ployage:
injecté
couleur de la douille de protection contre le ployage:
noir
résistant à l'huile selon IEC 60811-404:
oui
dimension AWG:
26
indice de protection (IP):
IP67

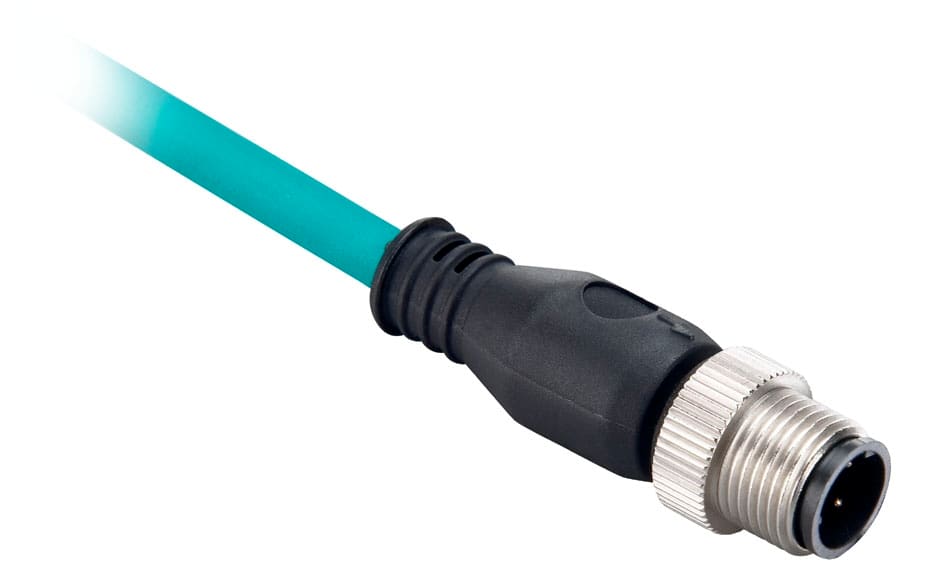

EtherNet patchcord M12D male right angle connector. Shielded. Features over-molded housing suitable for IP67 applications and harsh industrial environments where extreme vibration, shock, chemicals and temperature are found. Flex-rated cable must be tied down and not flexed within 6 inch of the connector. Single-ended cordsets can be custom terminated with one of several field attachable connectors. Designed to ODVA EtherNet/IP™ specifications and ISO IEC 24702, IEC 61918. Twisted pairs maintain signal balance through cable to provide high noise immunity and return loss.
- Over molded housing suitable for IP67 applications and harsh industrial environments where
- extreme vibration, shock, chemicals, and temperature are found.
- Flex-rated cable (must be tied down and not flexed within 6 in. of the connector).
- Custom termination of single-ended cordsets with one of several field attachable connectors.
- Designed to ODVA EtherNet/IP specifications and ISO IEC 24702, IEC 61918.
- Twisted pairs maintain signal balance through cable to provide high noise immunity and return loss.
- Suitable for noise environments M3I3C3E3.
