Allen-Bradley - Electro-Mech Pres Cntrl Sw - 836T-T252J
592.54 CHF
par PC
592.54 CHF
1
Livraison
Nombre d'articles disponibles pour la livraison :0
Spécificités essentielles
pression de travail max. - 13789 hPa
différentiel de pression - 0 bar
tension de fonctionnement nominale Ue à CA 50 Hz - 600...600 V
Conditionnement
1 PC
EAN
10781180893640
Réf. Routeco
836T-T252J
Réf. Fournisseur
836T-T252J
Réf. Commerciale
836T-T252J
pression de travail max.:
13789 hPa
différentiel de pression:
0 bar
tension de fonctionnement nominale Ue à CA 50 Hz:
600...600 V

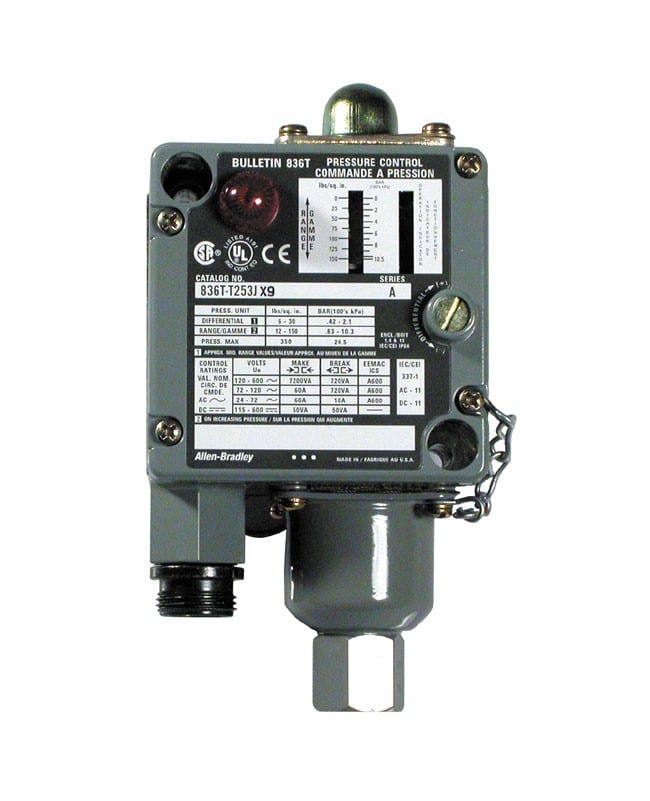

836T Pressure Controls - Traditional Machine Tool, T - Style Pressure Control. 75 psi. Enclosure Type 1, 4 and 13 Industrial use.. S.P.D.T. , 2 - circuit contact block. No Modifications
- Bulletin 836T Externally Adjustable Electromechanical Pressure Controls meet the traditional requirements of the transportation and machine tool industries. Proven dependability and construction make this line of pressure controls well-suited for these and other rugged applications.
- Pressure Controls
- Externally adjustable ranges from 30 in. Hg vacuum to 5000 psi
- Externally adjustable differential from 1.5...3000 psi
- Bellows type available in copper alloy or stainless steel
- Piston type actuators available with or without seal
- 2-circuit or 4-circuit electrically isolated contacted blocks
- Available in Type 1, 4 & 13, 4X, and 7 & 9, 4 & 13 combination enclosures
- Pressure Difference Controls
- 1...70 psi adjustable difference range
- Adjustable differential from 1...50 psi
