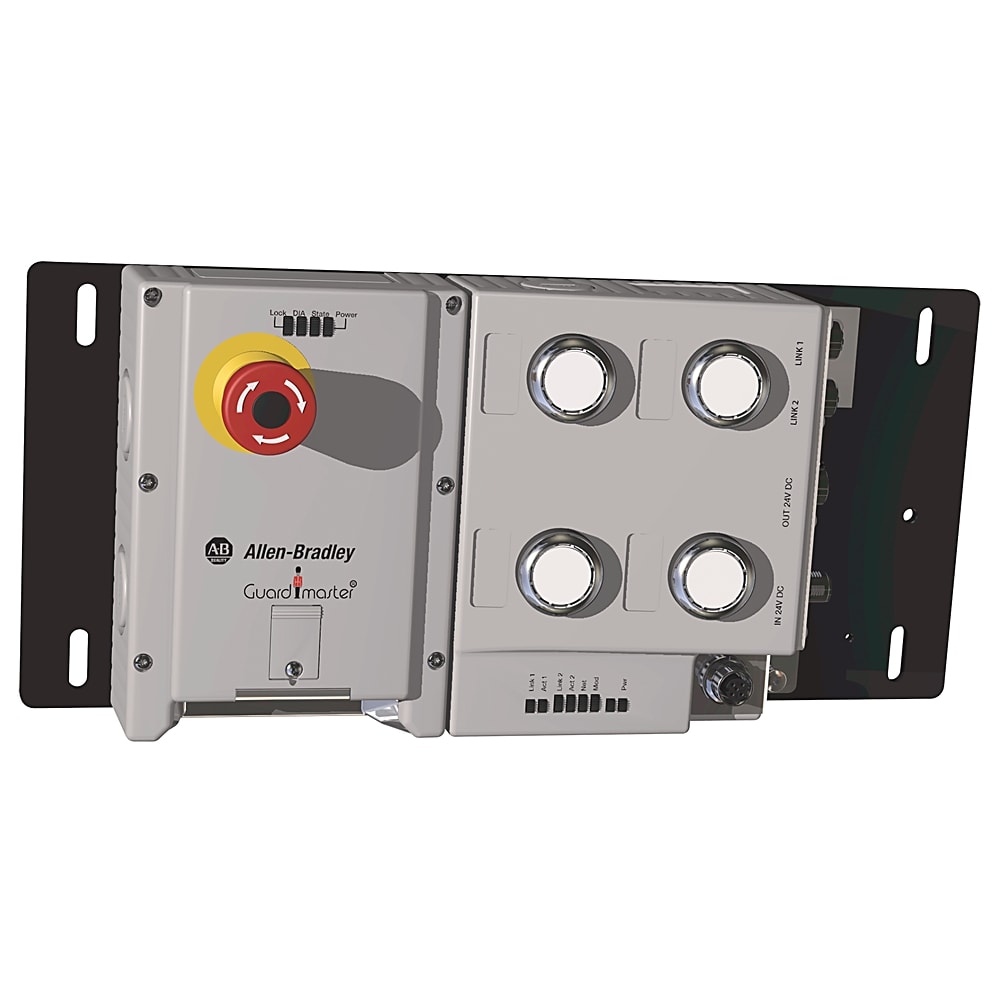

Guardmaster - PTR Left Ethernet Lock Module - 442G-MABRB-UL-E0JP4679

Lock Module, 442G Access Box, Power to Release, Unique Code, EtherNet/IP (2 x M12, D-coded), Left-hand Guard, E-stop, Four Push Buttons, and Connector for Enabling Switch

• EtherNet/IP™ connection saves time and money compared to wiring the

• standard device.

• Easy integration using an add-on profile in Studio 5000 Logix Designer™

• Supports Device Level Ring (DLR) network topologies to help increase network resiliency*.

• Rated PLe, Cat 4 for interlocking, guard lock monitoring and control of guard locking.

• Unique RFID coded bolt actuator achieves the highest level of tamper-resistance in accordance with ISO 14119.

• High holding force 2000 N (Fzh per ISO 14119) is suitable for a wide range of guarding applications.

• Power-to-Release and Power-toLock versions

• Versions available with an integrated emergency stop push button and connector for attaching an enabling switch.

• Integrated push buttons used for standard operations such as reset,

• request to unlock, start/stop.

• LEDs provide local status and diagnostics.

• Optional escape release allows a person locked inside the safeguarded area to exit quickly and easily.

• Two integrated hasps includedto affix padlocks

• *The Multifunctional Access Box currently does not support CIP Sync,™ including

• CIP Motion™ applications. It should not be connected to a DLR network that

• contains multicast I/O devices.
