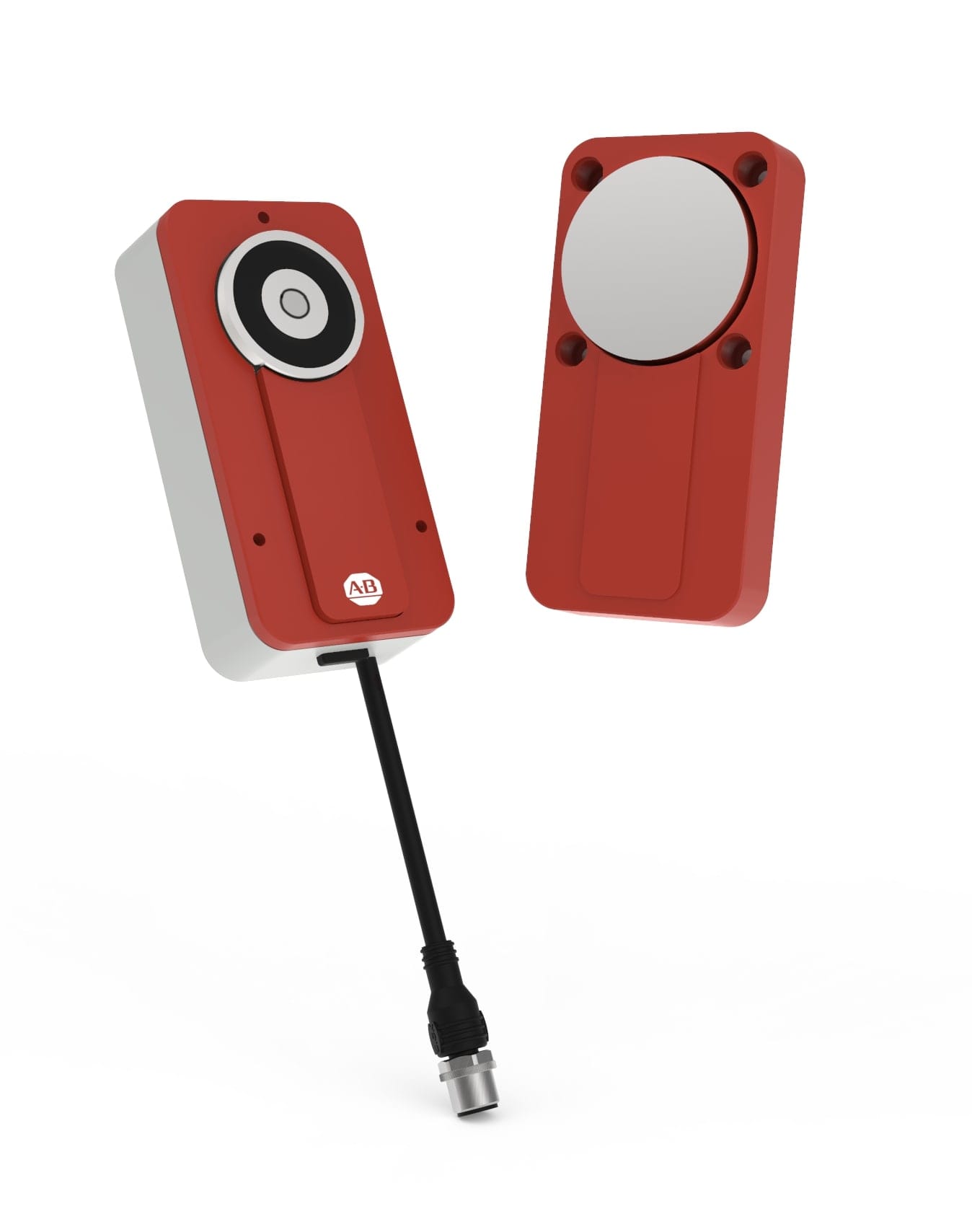

Guardmaster - Guardmaster Electromagnetic Sw - 440G-EZS21STL05J

Guard Locking Switch - 440G-EZ: Solenoid Voltage: 24V DC, Contacts(Safety and Aux): 2 x PNP, (0.2 max.) - Lock Status, Actuator: Magnetic Actuator,500N Holding Force, Pigtail with M12 Male (5-pin) Connector

• Increased productivity and efficiency: Bring application and machine to a safe stop without interrupting the process. Ease of installation: Non-contact technology simplifies sensor and actuator alignment. Process and machine protection per ISO EN 14119 Non-contact interlocking device with a “Power to Lock” (PTL) locking function. PLe, Cat 4, SIL 3 Safety Ratings 500 N Holding force and ±5 mm alignment tolerance. IP67 Enclosure: Anodized Aluminum Sensor Housing; Fiberglass/PVC Actuator Housing. LED diagnostics for switch status (ON/OFF) and lock status (ON/OFF). 5-pin and 8-pin M12 Micro QD connection options
