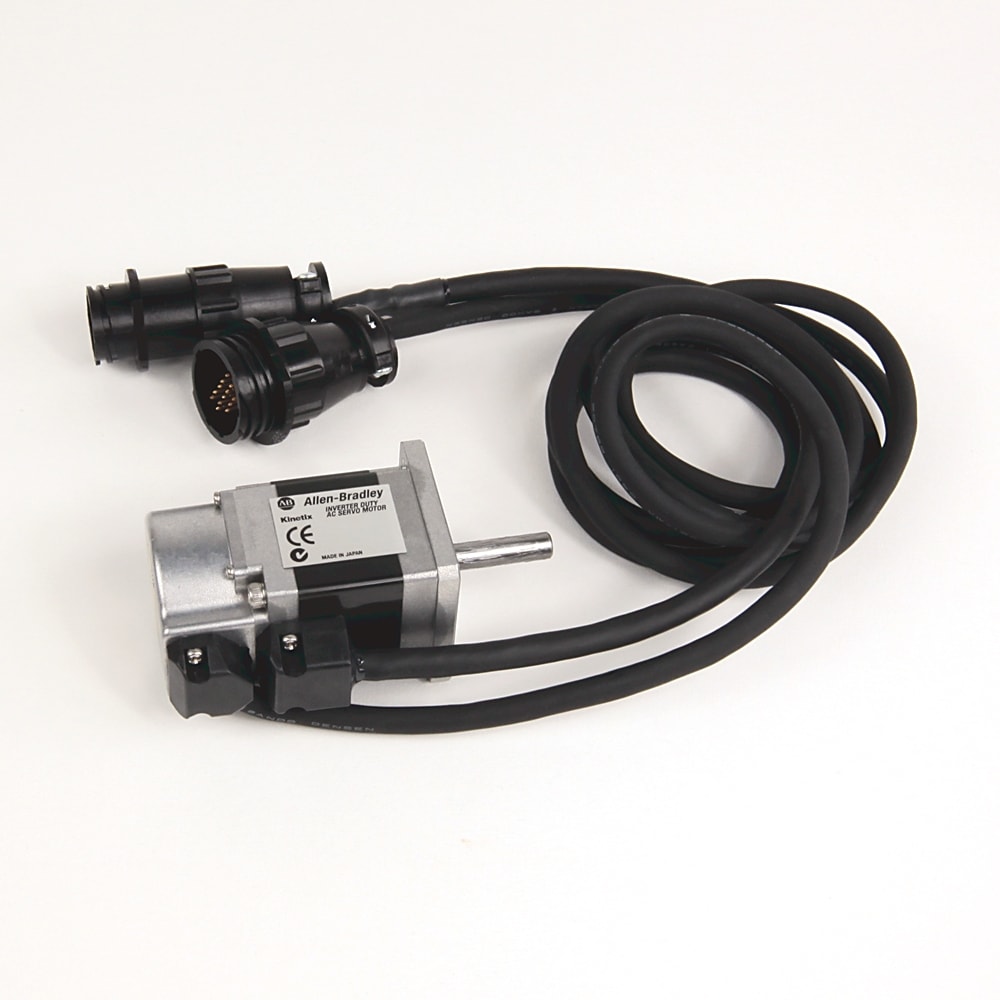

Allen-Bradley - TL-Series TLY 240V AC Rotary S - TLY-A2530P-HJ62AA

TL-Series Servo Motor, 230V AC, Frame Size 25 = 90 mm (3.54 in.) or NEMA 34, 5000 rpm, Incremental Encoder (2000 lines/revolution), IP65 housing/ Shaft key/No shaft seal, Standard (Metric)

• Tight position control with 17-bit resolution

• - Absolute Encoder Capability

• - Eliminates the need for a homing routine, making startup faster and easier

• - Single-turn high resolution feedback is standard. Multi-turn (+/- 32768 revolutions) high resolution feedback with battery backup is available

• - Ability to control high load-to-motor rotor inertia ratios while maintaining a stable system.

• - On-board memory retains motor identity

• - Serial communication automatically reports identity to the drive for reduced commissioning time

• - 2000 line incremental encoder available for cost sensitive applications.

• Superior Torque to Size Ratio

• More power in a smaller package – 46, 70, 90 and 100 mm frame sizes

• Integral 24 volt brake option
