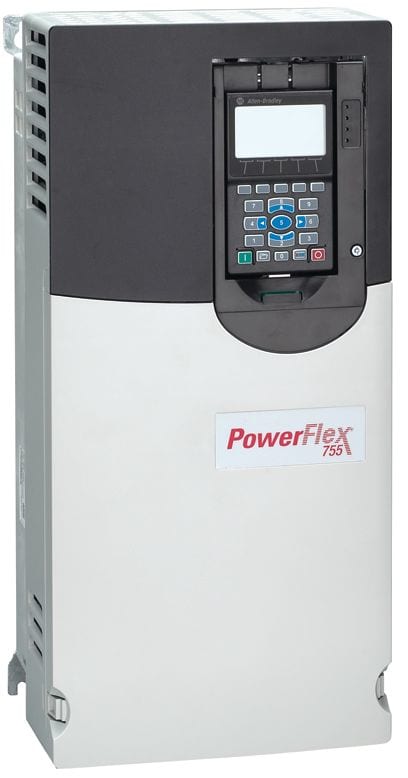

Allen-Bradley - PowerFlex Air Cooled 755 AC Dr - 20G1AGE242JN0NNNNN

PowerFlex 755 AC Drive, with Embedded Ethernet/IP, Air Cooled, AC Input with Precharge, no DC Terminals, Type 12 / IP54, 242 Amps, 250HP ND, 200HP HD, 600 VAC, 3PH, Frame 7, Filtered, CM Jumper Installed, None, Blank (No HIM)

• Power ratings: ◦380…480V: 0.75…1400 kW / 1.0…2000 Hp / 2.1…2330 A

• ◦600V: 1.0…1500 Hp / 1.7…1530 A

• ◦690V: 7.5…1500 kW / 12…1485 A

• IP00/IP20 NEMA/UL Type Open, flange mount, IP54 NEMA/UL Type 12

• Pre-engineered Power Option Bay provides cost-effective solution for popular power options

• Dual-port EtherNet/IP™ Option Module helps you leverage EtherNet/IP networks, minimize the number of managed switches, and reduce cabling needs when using Device Level Ring (DLR) networks

• Automatic Device Configuration (ADC) allows Logix controllers to detect a replaced drive and download all configuration parameters automatically

• V/Hz control, vector control with FORCE™ technology, sensorless vector control, and permanent magnet motor control

• Integrated Motion on EtherNet/IP eases drive configuration and control by using profiles and instruction sets embedded in the Studio 5000™ Logix Designer application

• Predictive diagnostics for increasing the life of cooling fans and relay outputs

• Configuration and programming via integral LCD Human Interface Module (HIM), DriveTools SP software, or Connected Components Workbench software

• Supports easy integration through the embedded EtherNet/IP port and five option slots that support feedback, I/O, safety, and communications modules and an auxiliary 24V DC power supply

• Available Safety Options

• Safe Torque-Off option is certified at PLe/SIL3 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system. All safety options are available as a kit for user installation

• Safe Speed Monitor option is certified at PLe/SIL3, Cat 4 and allows you to safely monitor and control the speed of your application which allows operators to perform some process or maintenance work without stopping the machine
