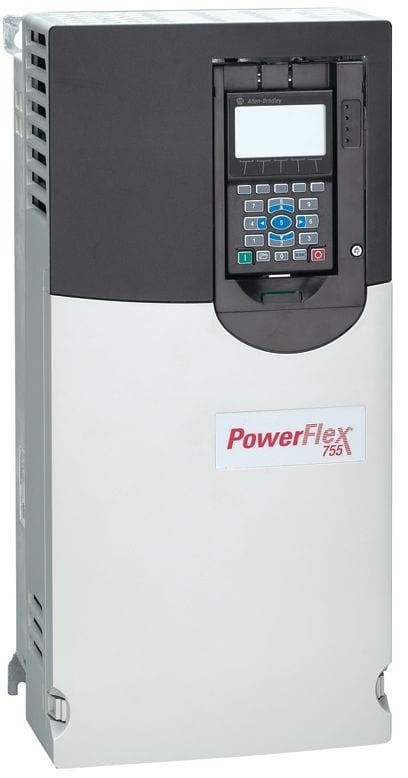

Allen-Bradley - PowerFlex Air Cooled 755 AC Dr - 20G11NC072JA0NNNNN

PowerFlex 755 AC Drive, with Embedded Ethernet/IP, Air Cooled, AC Input with DC Terminals, Open Type, 72 Amps, 37kW ND, 30kW HD, 400 VAC, 3 PH, Frame 4, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM)

• PowerFlex 755 AC Drives provide ease of use, application flexibility, and high performance.

• They include multiple control and hardware options, as well as optional embedded safety features.

• These drives are well-suited for a wide variety of motor control applications including pumps, fans, and conveyors.

• With Integrated Motion on EtherNet/IP, you can place these drives on the same network as Kinetix drives.

• A Dual-port EtherNet/IP Option Module supports ring, linear, and star topologies, as well as Device Level Ring (DLR) functionality for fault tolerant connectivity and high drive availability.

• IP00/IP20 NEMA/UL Type Open, flange mount, IP54 NEMA/UL Type 12.

• Pre-engineered Power Option Bay provides cost-effective solution for popular power options.

• Automatic Device Configuration (ADC) allows Logix controllers to detect a replaced drive and download all configuration parameters automatically.

• V/Hz control, vector control with FORCE™ technology, sensorless vector control, and permanent magnet motor control.

• Integrated Motion on EtherNet/IP eases drive configuration and control by using profiles and instruction sets embedded in the Studio 5000 Logix Designer® application.

• Predictive diagnostics for increasing the life of cooling fans and relay outputs.

• Configuration and programming via integral LCD Human Interface Module (HIM), DriveTools SP software, or Connected Components Workbench software.
