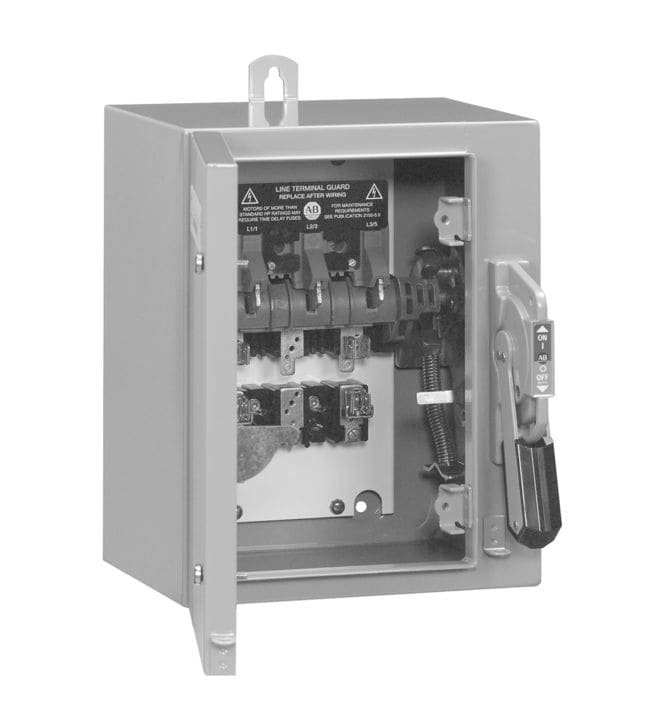

Allen-Bradley - NEMA 1494G Enclosed Disconnect - 1494G-BF3J6-98-203W-414

1494G Enclosed Disconnect Switches, 30A, Type 3R/4/12 - Enclosure Code F, 3 pole, three phase, Class J fuse clips, 600VAC

• Includes fully-exposed switch blades

• Includes lockable handle

• Offers field-installed accessories

• For use in indoor and outdoor applications

• Switch, mechanism and handle are always connected, even when the enclosure door is open

• Line shield prevents accidental contact with the line side of the switch

• Protective fuse cover (optional) prevents accidental contact

• cULus Listed per UL 98 for switches 30...600 A

• UL Listed per UL 508 'at motor' disconnect rating for switches 30...100 A
