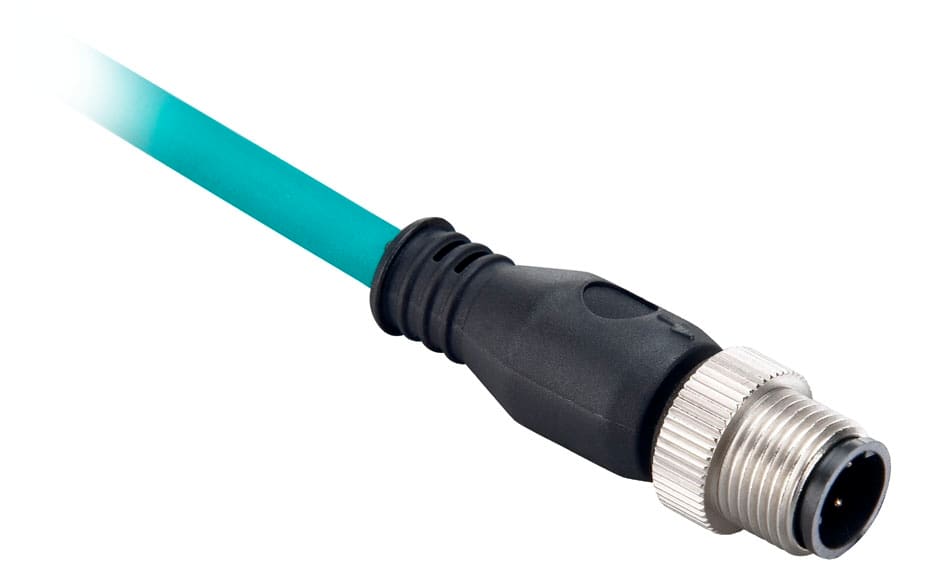

Allen-Bradley - "Micro D-Code, QD Style Etherne" - 1585D-E4UBDE-20
pro jede
170.34 CHF
Lieferung
Grundlegende Spezifikationen
Kategorie - 5E
Länge - 20 m
Steckverbindertyp Anschluss 1 - M12
Steckverbindertyp Anschluss 2 - M12
Werkstoff des Steckverbindergehäuses, Anschluss 2 - Kunststoff
Verpackung
1 jede
EAN
10885630038145
Lieferanten Ref.
1585D-E4UBDE-20
Hersteller-Referenz
1585D-E4UBDE-20
Kommerzielle Referenz
1585D-E4UBDE-20
Kategorie:
5E
Länge:
20 m
Steckverbindertyp Anschluss 1:
M12
Steckverbindertyp Anschluss 2:
M12
Werkstoff des Steckverbindergehäuses, Anschluss 2:
Kunststoff
Mantel-Farbe:
sonstige
Knickschutztülle:
angespritzt
Farbe der Knickschutztülle:
schwarz
Ölbeständig nach EN IEC 60811-404:
ja
AWG-Querschnitt:
26
Schutzart (IP):
IP67
EtherNet patchcord M12D male right angle connector. Shielded. Features over-molded housing suitable for IP67 applications and harsh industrial environments where extreme vibration, shock, chemicals and temperature are found. Flex-rated cable must be tied down and not flexed within 6 inch of the connector. Single-ended cordsets can be custom terminated with one of several field attachable connectors. Designed to ODVA EtherNet/IP™ specifications and ISO IEC 24702, IEC 61918. Twisted pairs maintain signal balance through cable to provide high noise immunity and return loss.
- Over molded housing suitable for IP67 applications and harsh industrial environments where
- extreme vibration, shock, chemicals, and temperature are found.
- Flex-rated cable (must be tied down and not flexed within 6 in. of the connector).
- Custom termination of single-ended cordsets with one of several field attachable connectors.
- Designed to ODVA EtherNet/IP specifications and ISO IEC 24702, IEC 61918.
- Twisted pairs maintain signal balance through cable to provide high noise immunity and return loss.
- Suitable for noise environments M3I3C3E3.
