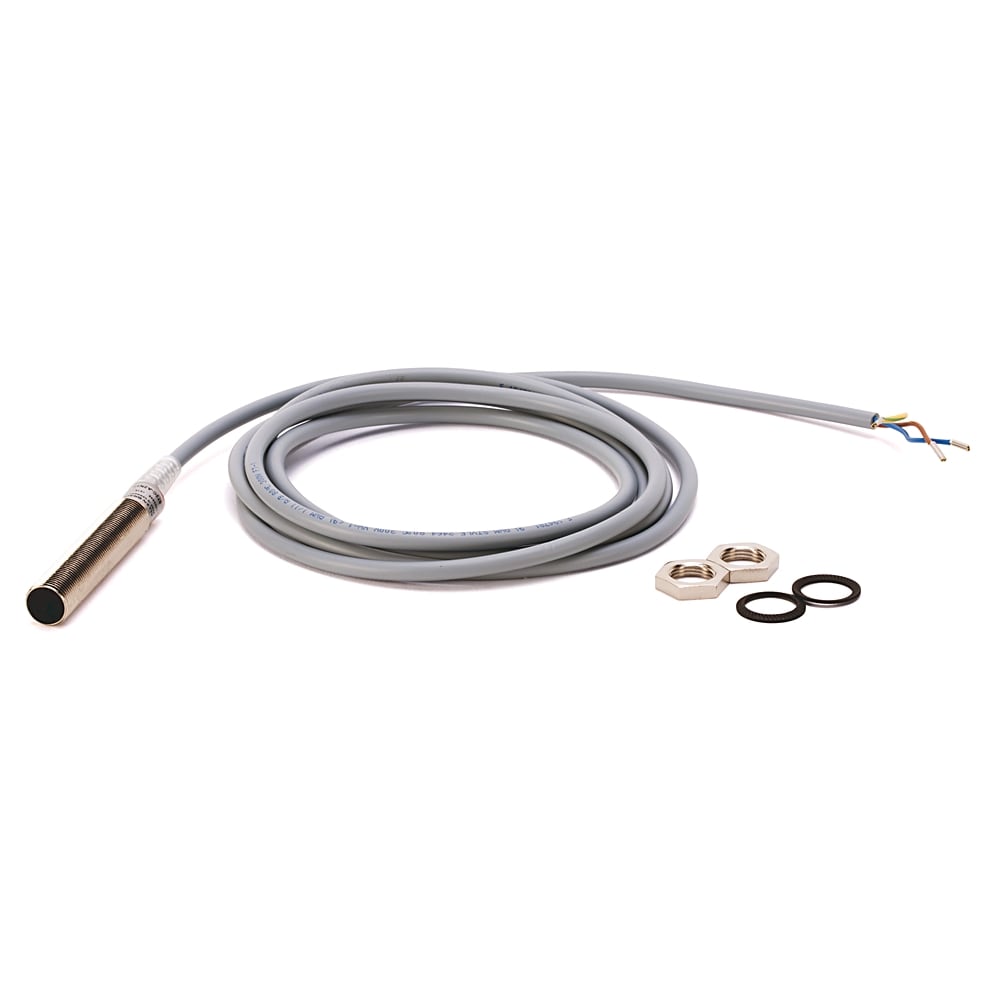

Allen-Bradley - Inductive Prox Sensor - 872C-A2N12-A2

Proximity Sensor, 2-Wire AC, 12mm Diameter, Tubular:Nickel Plated BrassRectangular, Standard, 2mm Sensing Distance, Shielded, N.O. Output, PVC Cable (2 Cond)

• Cost-effective construction with durable plastic face

• Durable nickel-plated brass barrel

• Standard, extended and long range detection (limited offering of 3x long range sensing versions – consult publication number: 872C-PP002A-EN-P for further details).

• Standard length and short body models available for spacechallenged applications

• Multiple connection options:

• – 2, 5 or 10 meter PVC or PUR cable

• – Micro (M12) and Pico (M8) quickdisconnect styles – 0.2 m, 0.5 m or 1 m Pigtail (short PVC cable with Micro QD)

• PNP or NPN, normally open (N.O.) and normally closed (N.C.) output types in shielded and unshielded models

• 8, 12, 18 and 30 mm IP67 (IEC 529) barrels with highly visible output indication

• False pulse, reverse polarity, overload, transient noise and short circuit protections

• -25 to 70 °C (-13 to 158 °F) operating temperature range

• cULus listed and CE marked
