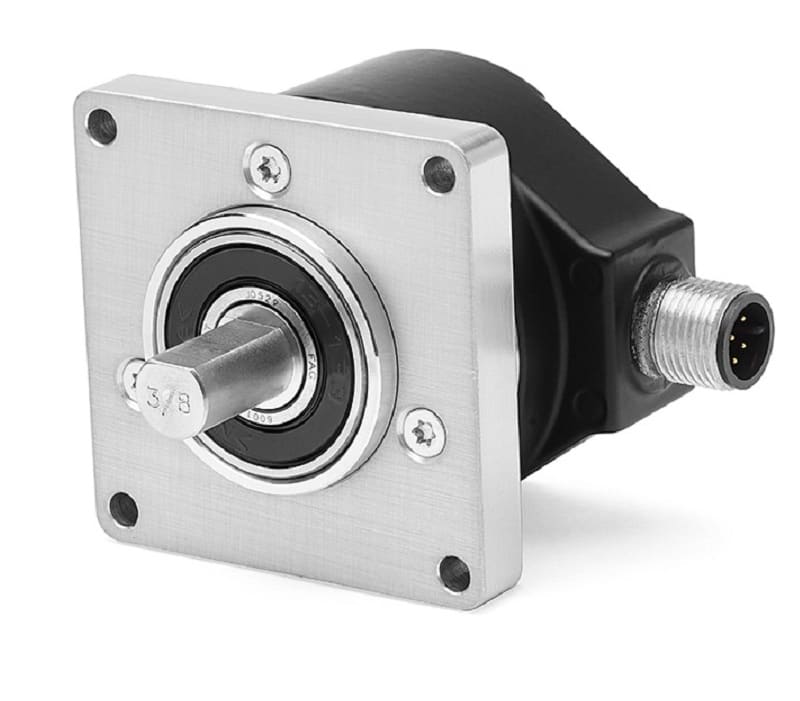

Allen-Bradley - Incremental Encoder - 847T-DL2A-RG01024

Incremental Encoder , Standard Square Flange , 10 mm Diameter Shaft with Flat , 4.5-5.5 Volt Line Driver,TTL (B-Leads-A, CW, Z gated with BN) , MS Connector, 10-Pin with mating connector, 1024 Pulses per Revolution.

• Robust mechanical design with metal code disk technology and unique bearing system helps the encoder tolerate shock, vibration and wide range of operating temperatures to reduce machine downtime

• Compact 2- and 2.5-inch design allows for limited installation space

• Square flange, servo flange and hollow shaft mounting options

• Choice of output signal phasing and output driver available for all form factors and resolutions

• Integer resolution from 1 to 65,536 counts per revolution for precision applications.

• Backward compatible with our 844A, 844B and 845 incremental encoders

• M12, Military Style (MS) and flyinglead connection options
