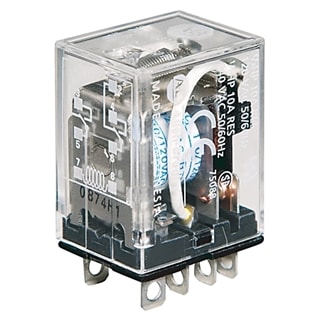

Allen-Bradley - GP Short Square Base Relay - 700-HF34Z24

General Purpose Miniature Square Base Relay, 4PDT, 24V DC

• These small relays—used in industrial applications—are available from

• Rockwell Automation in two- and four-pole versions. Two styles of sockets

• are available, as well.

• Clear cover

• Allows visual inspection of terminals.

• Plug-in terminals

• Secure connections, yet easy to install or remove relays.

• What’s New

• Color coding

• Tabs and coil covers indicate coil voltage type: orange for AC and blue for DC.

• Push-to-test with manual override

• Manual override feature enables changing contact state, even when coils

• are not energized. This upgrade changes all catalog numbers that had the (-1) option to the new (-3) option.

• Increased contact ratings

• Relays are now rated for 12 amps.

• Visual

• Wiring diagram on top faceplate

• Mechanical indicator

• Sockets

• Available in two styles for each contact configuration, one that is compatible

• with Allen-Bradley general purpose relay accessories such as surge suppressors and timing units and the second with traditional open style terminals.
