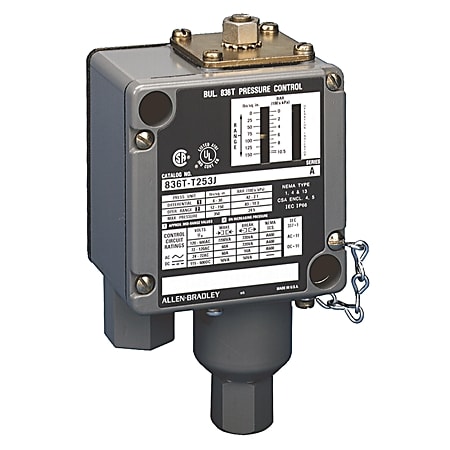

Allen-Bradley - Electro-Mech Pres Cntrl Sw - 836T-T253E

836T Pressure Controls - Traditional Machine Tool, T - Style Pressure Control. 150 psi. Enclosure Type 7 & 9 and 4 & 13 Combined Hazardous locations. S.P.D.T. , 2 - circuit contact block. No Modifications

• Bulletin 836T Externally Adjustable Electromechanical Pressure Controls meet the traditional requirements of the transportation and machine tool industries. Proven dependability and construction make this line of pressure controls well-suited for these and other rugged applications.

• Pressure Controls

• Externally adjustable ranges from 30 in. Hg vacuum to 5000 psi

• Externally adjustable differential from 1.5...3000 psi

• Bellows type available in copper alloy or stainless steel

• Piston type actuators available with or without seal

• 2-circuit or 4-circuit electrically isolated contacted blocks

• Available in Type 1, 4 & 13, 4X, and 7 & 9, 4 & 13 combination enclosures

• Pressure Difference Controls

• 1...70 psi adjustable difference range

• Adjustable differential from 1...50 psi
