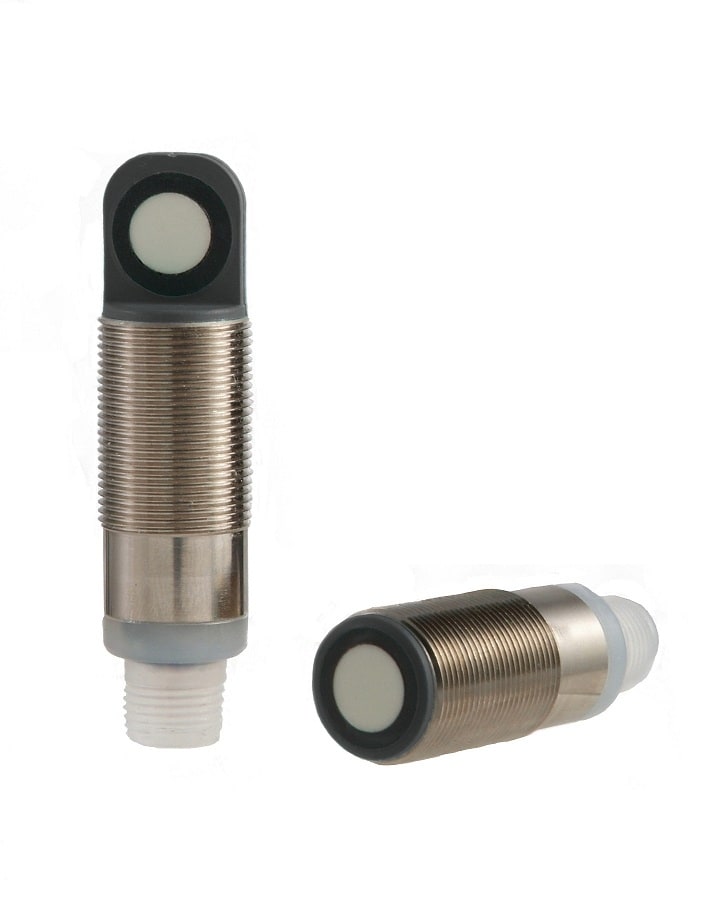

Allen-Bradley - 873M Ultrasonic Sensor - 873M-D18PO300-D4

Proximity Sensor, Cylindrical 18mm, PNP - Discrete, 18mm Diameter, 50mm to 300mm Sensing Distance, Micro Quick-Disconnect (DC)

• Nickel-plated brass 18 mm cylindrical or right-angle threaded barrel provides ease of mounting and reduces installation time.

• Analog model’s feature 0…10 VDC or 4…20 mA.

• Discrete (PNP) models feature normally-open/normally-closed functions.

• Window teaching allows sensing range to be defined inside a user-taught sensing area for both discrete and analog models. The user can achieve superior background suppression.

• Teaching of the sensor can be accomplished by remote teach or optional programming cable.

• Bright LEDs allow the user to monitor power, output and margin from any direction – reducing time required for setup and troubleshooting
